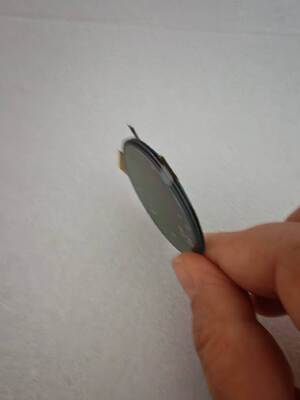

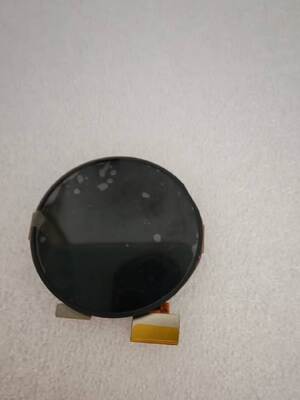

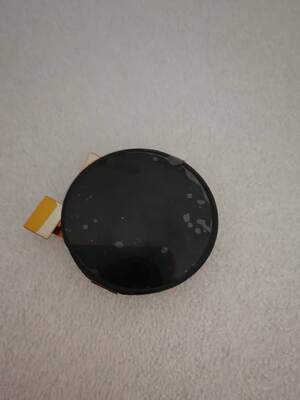

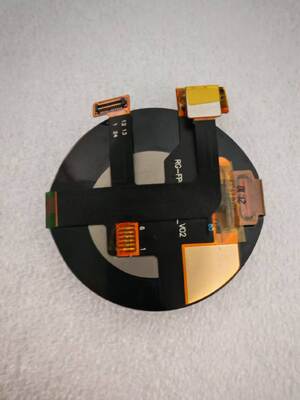

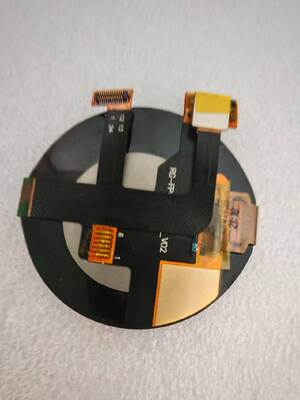

1.5 Inch Round AMOLED Display Module with 466*466 Dots and 800c/d Brightness

  • 1.5 Inch Round AMOLED Display Module with 466*466 Dots and 800c/d Brightness
  • 1.5 Inch Round AMOLED Display Module with 466*466 Dots and 800c/d Brightness
  • 1.5 Inch Round AMOLED Display Module with 466*466 Dots and 800c/d Brightness
  • 1.5 Inch Round AMOLED Display Module with 466*466 Dots and 800c/d Brightness
  • 1.5 Inch Round AMOLED Display Module with 466*466 Dots and 800c/d Brightness
  • 1.5 Inch Round AMOLED Display Module with 466*466 Dots and 800c/d Brightness
Место происхождения Китай
Фирменное наименование HuaXin
Сертификация ISO14001/ ISO9001/IATF16949
Номер модели HX150ON1499
Документ HX150ON1499 drawing Model (...1).pdf
Количество мин заказа 500
Цена $7.8
Упаковывая детали Blister+Foam Box+Bubble Bag+Внутри картонная картонная коробка
Время доставки 6 недель ~ 8 недель
Условия оплаты Т/Т
Поставка способности 50 тысяч в месяц

Свяжитесь я бесплатно образцы и талоны.

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

Skype: sales10@aixton.com

Если вы имеете любую заботу, то мы предусматриваем 24-часовую интерактивную справку.

x
Подробная информация о продукте
Технология отображения Круглый Амоль Имя Амоль -панель
Размер 1.5" Разрешение 466*466
Яркость 800 центов в день Интерфейс Мипи
Ctp Ic CST9217
Выделить

1.5 Inch AMOLED Display Module

,

466*466 Dots AMOLED Panel

,

800c/d Brightness Round AMOLED Display
Оставьте сообщение
Характер продукции
1.5 Inch Round AMOLED Display Module with Oncell Touch - 466×466 Dots and 800c/d Brightness
Key Specifications
Part No. HX150ON1499
Display Size 1.5 inch round AMOLED display
Outline Size (mm) 40.70×40.94×0.77
AA Size (mm) 38.31×38.31
Resolution 466×466
Interface MIPI
Brightness 800 c/d
View Angle All
Driving IC CO5300
CTP driving IC CST9217
Technical Drawing
1.5 Inch Round AMOLED Display Module with 466*466 Dots and 800c/d Brightness 0
OLED Product Knowledge
OLED Advantages
  • Lighter and thinner than LCDs
  • High contrast ratio
  • High color saturation
  • Lower power consumption
OLED Disadvantages
  • AMOLED is more expensive than LCD and TFT
  • Lifetime is shorter than LCD and TFT
Company Information
Huaxin Advantage
  • Factory base located at inland city which has cost effective
  • Most advanced new equipment which can keep quality stable
  • Most processes using fully automatic equipment which has efficiency and stable quality
  • Professional engineers and production leaders with 20+ years experience in LCD field
  • Self design for customized product
Our Certificates
  • ISO14001
  • ISO9001/IATF16949
  • SGS of LCD module
Huaxin Technology (Enshi) Co., LTD
Hubei.Enshi
Date of foundation: 2009
High technology enterprise specializing in research, development, production and sales of LCD, LCM, TFT, backlight, OLED
Register capital: twenty million
Current staff: 500+
R&D accounts for 10%
QC accounts for 15%
Production Capacity
Annual Production Capacity 2021 (Current) 2022 (Goal) 2023 (Challenge) 2024 (Challenge) 2025 (Challenge) Remark
LCD Production Capacity 4.5 9 9 9 9 Unit: thousands of logarithms/Day
LCM Production Capacity 70 150 300 450 450 Unit: Thousand piece/Day
Backlight Production Capacity 100 200 300 500 500 Unit: Thousand piece/Day
OLED Production Capacity 10 20 30 40 50 Unit: Thousand piece/Day
Product Application
  • Safety box & instrument
  • Lock & smart home
  • Transmitter & watch
  • Watch & radio
  • Collimator & navigator
AMOLED Display Characteristics
  • Self-Emissive Pixels
  • High Contrast Ratio
  • Color Accuracy and Vibrancy
  • Wide Viewing Angles
  • Power Efficiency
  • Thinness and Flexibility
  • Fast Response Time
Power Efficiency Comparison
  1. Power Consumption: AMOLED displays consume power on a per-pixel basis, meaning that pixels displaying black or dark content consume very little power, while pixels displaying bright or white content consume more power. LCD and LED displays require a constant backlight that consumes power regardless of the displayed content.
  2. Content Dependency: AMOLED displays are more power-efficient for content with dark or black areas, as individual pixels can be turned off to save power. LCD and LED displays consume a relatively constant amount of power as the backlight remains active.
  3. Brightness Control: AMOLED displays can dynamically adjust pixel brightness for better efficiency in low-brightness scenarios. LCD and LED displays typically have fixed backlight brightness, resulting in higher power consumption.
  4. Display Size: AMOLED displays tend to be more power-efficient for smaller sizes as consumption scales with pixel count. Larger LCD/LED displays may require more power-hungry backlights, reducing efficiency compared to same-size AMOLED displays.
