13.3 Inch Flexible AMOLED Display Module with 2048*1536 Resolution and 300cd/m2 Brightness

  • 13.3 Inch Flexible AMOLED Display Module with 2048*1536 Resolution and 300cd/m2 Brightness
  • 13.3 Inch Flexible AMOLED Display Module with 2048*1536 Resolution and 300cd/m2 Brightness
  • 13.3 Inch Flexible AMOLED Display Module with 2048*1536 Resolution and 300cd/m2 Brightness
  • 13.3 Inch Flexible AMOLED Display Module with 2048*1536 Resolution and 300cd/m2 Brightness
  • 13.3 Inch Flexible AMOLED Display Module with 2048*1536 Resolution and 300cd/m2 Brightness
Место происхождения Китай
Фирменное наименование HuaXin
Сертификация ISO14001/ ISO9001/IATF16949
Номер модели LP133QX1-EPA1
Документ LP133QX1-EPA1_Final CAS_Ver...3_.pdf
Количество мин заказа 1000
Цена Подлежит обсуждению
Упаковывая детали Blister+Foam Box+Bubble Bag+Внутри картонная картонная коробка
Время доставки 6 недель ~ 8 недель
Условия оплаты Т/Т
Поставка способности 50 тысяч в месяц

Свяжитесь я бесплатно образцы и талоны.

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

Skype: sales10@aixton.com

Если вы имеете любую заботу, то мы предусматриваем 24-часовую интерактивную справку.

x
Подробная информация о продукте
Технология отображения гибкий Амолед Имя OLED -дисплей
Размер 13.3 " Разрешение 2048*1536
Яркость 300CD/M2 Интерфейс 40PIN-eDP
Угол обзора все
Выделить

13.3 Inch AMOLED Display Module

,

2048*1536 Resolution OLED Display Module

,

300cd/m2 Brightness Flexible AMOLED Display
Оставьте сообщение
Характер продукции
13.3 Inch Flexible AMOLED Display Module
High-resolution 2048×1536 flexible AMOLED display with 300cd/m² brightness and on-cell touch technology featuring EDP interface.

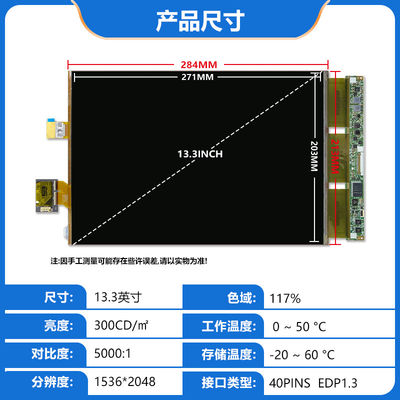

Product Specifications
Part No. LP133QX1-EPA1
Display Size 13.3 inch flexible AMOLED
Outline Size (mm) 213.80×284.80×0.53
AA Size (mm) 202.752×270
Resolution 2048×1536
Interface 40PIN eDP
Brightness 300c/d
View Angle ALL

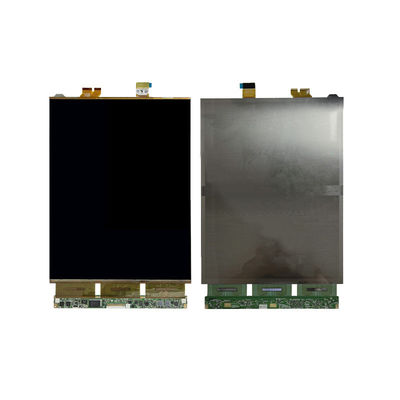

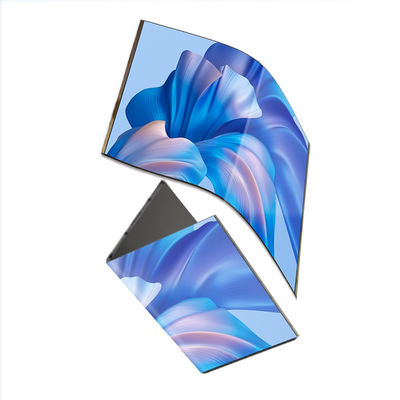

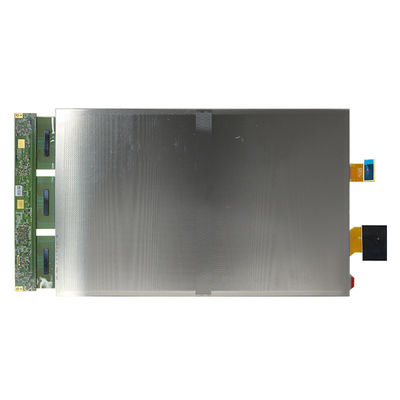

Product Images
13.3 Inch Flexible AMOLED Display Module with 2048*1536 Resolution and 300cd/m2 Brightness 0 13.3 Inch Flexible AMOLED Display Module with 2048*1536 Resolution and 300cd/m2 Brightness 1 13.3 Inch Flexible AMOLED Display Module with 2048*1536 Resolution and 300cd/m2 Brightness 2 13.3 Inch Flexible AMOLED Display Module with 2048*1536 Resolution and 300cd/m2 Brightness 3
OLED Technology Overview
OLED Advantages
  • Lighter and thinner than LCD displays
  • High contrast ratio
  • Excellent color saturation
  • Lower power consumption
OLED Disadvantages
  • Higher cost compared to LCD and TFT
  • Shorter operational lifetime than LCD and TFT
Manufacturer Information
Huaxin Technology (Enshi) Co., LTD
Founded: 2009 | Location: Hubei, Enshi
Registered capital: 20 million | Employees: 500+
R&D: 10% of workforce | QC: 15% of workforce
Company Advantages
  • Cost-effective inland production base
  • Advanced equipment for stable quality
  • Automated processes for efficiency
  • 20+ years of LCD industry experience
  • Custom design capabilities
Certifications
ISO14001, ISO9001/IATF16949, SGS certified LCD modules
Production Capacity
Product Type 2021 2022 2023 2024 2025 Unit
LCD Production 4.5 9 9 9 9 Thousands/Day
LCM Production 70 150 300 450 450 Thousand Pieces/Day
Backlight Production 100 200 300 500 500 Thousand Pieces/Day
OLED Production 10 20 30 40 50 Thousand Pieces/Day
Product Applications
  • Safety boxes & instruments
  • Locks & smart home devices
  • Transmitters & watches
  • Radios & navigation devices
  • Collimators & medical equipment
AMOLED Display Characteristics
  • Self-emissive pixels
  • Superior contrast ratio
  • Excellent color accuracy and vibrancy
  • Wide viewing angles
  • Power efficiency
  • Thin and flexible design
  • Fast response time
Power Efficiency Comparison: AMOLED vs. LCD/LED Displays
  • Power Consumption: AMOLED consumes power per-pixel, while LCD requires constant backlight
  • Content Dependency: AMOLED is more efficient for dark content as pixels can turn off
  • Brightness Control: AMOLED adjusts brightness per-pixel, LCD has fixed backlight
  • Display Size: AMOLED more efficient for smaller displays, LCD backlights consume more power at larger sizes
